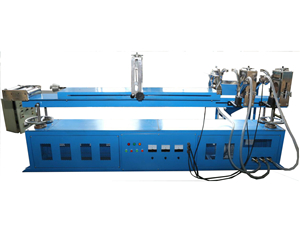

产品名称: ZBJ系列纵包机

发布日期: 2015/9/30 14:28:13

点击数: 863

二维码:

简述:

产品详情

产品介绍
◆ Product Introduction
该系列纵包机是在引进国外样机的基础上吸收消化而设计制造的,共分两个规格:ZBJ-2000和ZBJ-3200,可对通信电缆从5对~2400对进行复合铝箔纵包,从而始终保持被纵包后电缆的光滑圆整,以保证质量。
This series longitudinal covering machine is designed and manufactured based on the absorption and diegestion of the introduced foreign model machines, dividing into two specifications: ZBJ-2000 and ZBK-3200. Composite aluminium foil longitudinal lapping from 5 couples to 2400 couples can be carried on to communication cables, therefore to always keep the smoothness and soundness of cables after longitudinal lapping to ensure the quality.
◆特点
◆ Characteristics
◆具有目前国内纵包工作范围最大之特点。
◆ Having the characterisitcs of the currently largest doemstic longitudinal work scope.
◆经纵包后的电缆圆整、光滑、无绉纹,从而保证了电缆的产品质量。
◆ The cable after longitudinal lapping is round and smooth without rumple to ensure the quality of cable products.
◆操作简单,整机工作台面可以在200mm范围内上下升降,导轮、纵包模、压紧模调换方便,零配件易购易换。
◆ Simple operation. The work platform surface of complete machine can rise and lower up and down within the scope of 200mm. It is convenient to regulate and replace guide wheel, longitudinal mold and press molding. It is also easy to purchase and replace parts and components.
◆新颖的纵包模设计,可使复合铝带平滑,圆整地包在电缆外层。
◆ Novel longitudinal mold design can make composite aluminium strip is smoothly and roundly covered the outer layer of cable.
◆成型模的前后调整更保证了纵包后的光滑、圆整、无绉纹。
◆ The adjustment before and after shaping mold better ensure the smoothness, roundness and non- rumple after longitudinal lapping.
◆纵包模夹可调整角度、距离,使纵包模口与压紧模稳定在同一中心。
◆ The angle and distance of longitudinal mold clamp can be adjusted to make longitudinal mold gating and press mold stablize in the same center.
◆加热功率和风量无级调节。
◆ Stepless regulation of heating power and air quantity.
◆主要技术参数

◆ Main Technical Parameters
